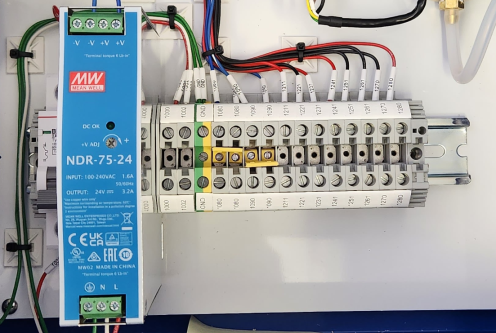

Appendix E: Internal Photos and Components









O	C/B - 2.0 AMP			O			2 Amp Circuit Breaker
O	POWER SUPPLY			O			24 VDC, 3.2 AMP, 75 WATT POWER SUPPLY
	O	1000	O	–––			Positive	120V 1 PHASE 60 Hz SUPPLY POWER
	O	1002	O	–––			Negative
	O	GND	O	–––			Ground
	O	1080	O	–––			Positive	24 VDC
	O	1080	O	–––
	O	1090	O	–––			Negative	24 VDC
	O	1090	O	–––
	O	1211	O	–––			Positive	0-1V, 0-20mA DEWPOINT OUTPUT
	O	1221	O	–––			Negative	0-1V DEWPOINT OUTPUT
	O	1231	O	–––			Negative	0-20mA DEWPOINT OUTPUT
	O	1241	O	–––			Positive	0-1V, 0-20mA TEMPERATURE OUTPUT
	O	1251	O	–––			Negative	0-1V TEMPERATURE OUTPUT
	O	1261	O	–––			Negative	0-20mA TEMPERATURE OUTPUT
	O	1270	O	–––			Negative	RS-485
	O	1280	O	–––			Positive
