Communications Setup

This menu option will allow the user to configure the communications settings for the RPS unit.  Note – It is strongly recommended that none of these settings be modified without assistance from Super Systems at 513-772-0060.



RS-232B Baud

This will allow the user to set the RS-232B baud rate.  Note – This must be set to 19200 for the Touchscreen.

If the Baud rate is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Baud rate should be fixed at 19200.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



RS232B Mode

This will allow the user to set the RS232B mode.  Note – This must be set to Modbus for the Touchscreen.

If the Mode is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Mode should be fixed at Modbus.

The options are: Modbus master or Modbus.



RS-232A Baud

This will allow the user to set the RS-232A baud rate.  Note – This must be set to 19200 for the Touchscreen.

If the Baud rate is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Baud rate should be fixed at 19200.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



RS232A Mode

This will allow the user to set the RS232A mode.  Note – This must be set to Modbus for the Touchscreen.

If the Mode is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Mode should be fixed at Modbus.

The options are: Modbus, H2 cell.



Host 485 Baud

This will allow the user to set the Host 485 baud rate.  Note – This must be set to 19200 for the Touchscreen.

If the Baud rate is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Baud rate should be fixed at 19200.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Host 485 Mode

This will allow the user to set the Host 485 mode. Note – This must be set to Modbus for the Touchscreen.

If the Mode is switched, the screen will no longer communicate with the instrument, and the RPS unit will need to be returned to Super Systems, Inc for repair.  The Mode should be fixed at Modbus.

The options are: MMI, or Modbus selectable.



Host 485 Address

This will allow the user to set the Host 485 address.  The range is 0 to 249.



Slave 1 Baud

This will allow the user to set the Slave 1 baud rate.  Note – This is configurable, but currently, it is not used with the RPS.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Slave 1 Mode

This will allow the user to set the Slave 1 mode.  Note – This is configurable, but currently, it is not used with the RPS   The options are: MMI, Modbus master, Yokogawa, or Modbus host.



Slave 2 Baud

This will allow the user to set the Slave 2 baud rate.  Note – This is configurable, but currently, it is not used with the RPS

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Slave 2 Mode

This will allow the user to set the Slave 2 mode.  Note – This is configurable, but currently, it is not used with the RPS.   The options are: MMI, Modbus, ADAM, SSi Analog Input Board, or Yokogawa.



IP Address

NOTE:  This screen option is for changing the controller's IP address.  If you need to change the IP address of the Touch Screen, see the instructions in Appendix A of the Touch Screen Manager manual, available at www.supersystems.com.

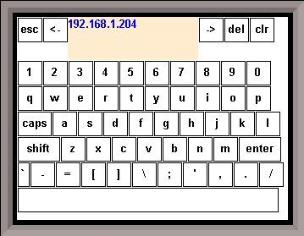

This option will allow the user to modify the IP address of the 9120 Instrument only.  The address must be supplied in a 999.999.999.999 format, or it will not be accepted.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.



Subnet Mask

NOTE:  This screen option is for changing the controller's subnet mask.  If you need to change the IP mask of the Touch Screen, see the instructions in Appendix A of the Touch Screen Manager manual, available at www.supersystems.com.



This option will allow the user to modify the IP subnet mask of the 9120 Instrument only.  The address must be supplied in a 999.999.999.999 format, or it will not be accepted.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.



Gateway

NOTE:  This screen option is for changing the controller's IP gateway.  If you need to change the IP gateway of the Touch Screen, see the instructions in Appendix A of the Touch Screen Manager manual, available at www.supersystems.com.



This option will allow the user to modify the IP gateway of the 9120 Instrument only.  The address must be supplied in a 999.999.999.999 format, or it will not be accepted.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.
