Tuning Assistant

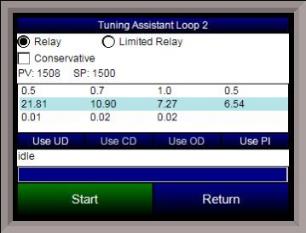

The tuning assistant menu option will allow the user to automatically generate the PID loop settings for the control loops in the 9120 controller.



The tuning assistant can be performed on either Loop 1 or Loop 2.



Note - The four buttons at the bottom of the screen: Use UD, Use CD, Use OD, and Use PI will be inaccessible until some PID settings are loaded into the PID settings list above the buttons.



The user can select the tuning option from the top left of the screen.  The choices are: Relay and Limited Relay.  This option will allow the user to limit the output value while the controller is controlling the furnace.  Normal operation will typically use 100 % output.  When the limited relay option is selected, the “Tuning Delta:” label and an edit box will be displayed.  When the Relay option is selected, the “Tuning Delta:” label and the edit box will be hidden.  The “Tuning Delta” value will be the amount to limit the controller by.  Pressing the edit box will display the numeric keypad, which will allow the user to enter the limiting value.



The “Conservative” option will allow the user to minimize, if not remove, the possibility for an overshoot of the setpoint.  If a small overshoot is acceptable, leave the “Conservative” checkbox unchecked.  If, however, no overshoot is desired, then checking the “Conservative” checkbox will accomplish this.



The process variable as well as the setpoint for the selected loop will be displayed below the “Conservative” option.



Pressing the Start button will begin the auto tune process.  Note - The process may take a few seconds to start.  The “Idle” line will change to display the calibration process for the auto tune.



Note: The Start button will become the Abort button while the calibration is running.  Pressing the Abort button will abort the process.  If the Abort button is pressed while a calibration is running, a message box will be displayed confirming the action.



Pressing the Yes button will stop the auto tune calibration and exit the screen.  The No button will cancel the abort.



When the calibration is finished, the PID settings list will be populated with suggested values and the four buttons underneath will be enabled.  The line below the PID settings list will read “Idle” again as well.



The user has the option to select only one of these sets of values: the Under Damped set (Use UD), the Critically Damped set (Use CD), the Over Damped set (Use OD), or the PI set (Use PI).  To select the set of values, press the corresponding button.  For example, to select the Critically Damped set of values, press the Use CD button.  The under damped values will reach the setpoint faster, but there will be more overshoot involved.  The over damped values will work to minimize the overshoot, but it will be slower than the under damped values.  The critically damped values are considered the “optimum” values because they are a balance between the under damped and over damped values with regards to time and overshoot.  The PI values are just the proportional band and the reset value (the P and the I from PID).  This could be applicable in an atmosphere loop, where the rate won’t have much effect.

Once a set of values has been accepted, the user can press the Return button to exit the screen.  The accepted values can be viewed on the PID Loop Setup menu option.  Note - Once the screen is closed out, the PID settings values will be lost.  To populate these values again, another auto tune routine will need to be run.
