Spool Correction

This menu item allows the thermocouple Spool Correction to be modified.   First select the temperature type from the drop down menu, then enter the spool correction value and press Set Spool Correction to save.  Press return to go back to the Menu list. The thermocouple spool correction can be used to before a survey is run so that the data displayed is corrected.  You can also enter the TC offset in after the survey is completed using the SDS Reporter software.

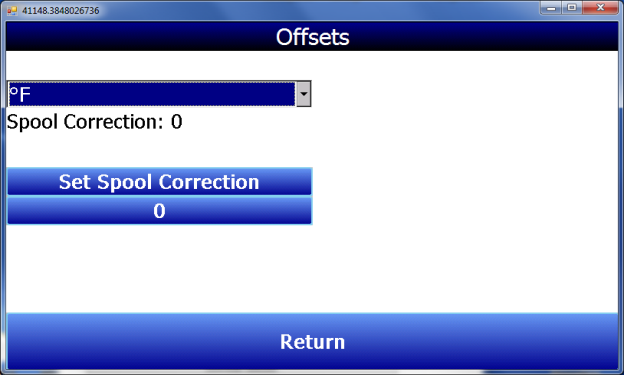

Figure 37 - Set Spool Correction
