Modbus Control

Running Modbus Control will enable the Modbus protocol to read and write registers.  To set this up, press Run, then determine the range of Modbus registers that will be monitored.  Press OK to save.

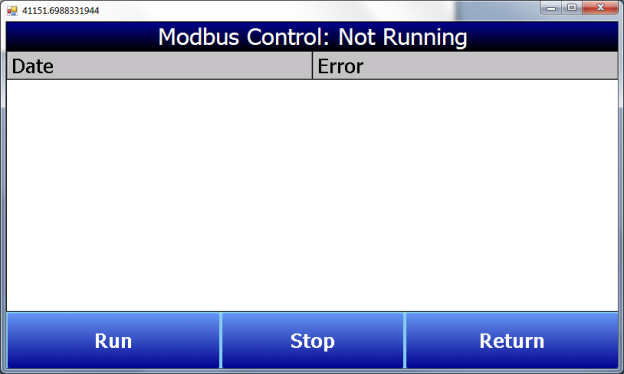

Figure 54 - Modbus Control Not Running Screen

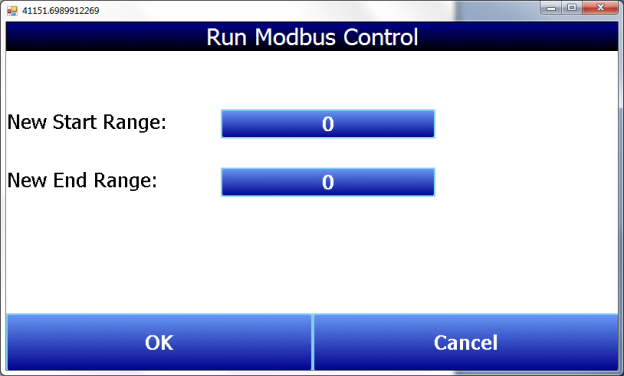

Figure 55 - Run Modbus Control Window



IMPORTANT: Avoid running Modbus control without first contacting Super Systems Inc. Technical Support (513-772-0060).
