Home Screen

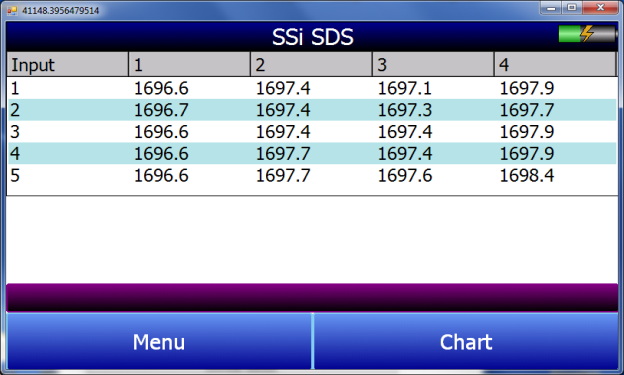

The default Home Screen for the SDS will display the temperature at each channel.  The grey bar along the top represents the 4 analog boards and the numbers along the left-hand side represent the 5 channels for each board.



Figure 26 - Home Screen
