Web Portal
The Color SDS Data Logger features a web-based portal that can be accessed by web browser, using Ethernet, from any computer that is connected to the same network as the data logger. The web portal displays current temperature readings for each thermocouple input.
|
To access the web portal, first open a web browser (such as Internet Explorer or Firefox). Next, in the location bar, type http:// followed by the IP address of the data logger. One way of finding this IP address is to obtain it from the Instrument Information window, as shown in Figure 24 – Instrument Information screen and IP address. |
|
Once you’ve entered the needed web address, you will see a screen that looks like the following one.

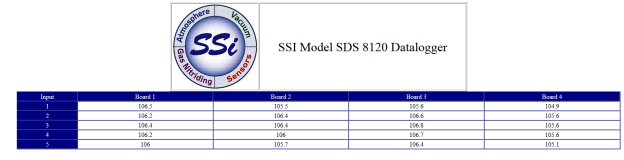

Figure 25 - Web Portal Screen
