Select Input Channels

Select Input Channels allows the user to manually determine whether a thermocouple is included in a survey or not while the survey is running.  First press Select Inputs.  Then, highlight the Input # to toggle between Select/Deselect.  To save changes, press OK.

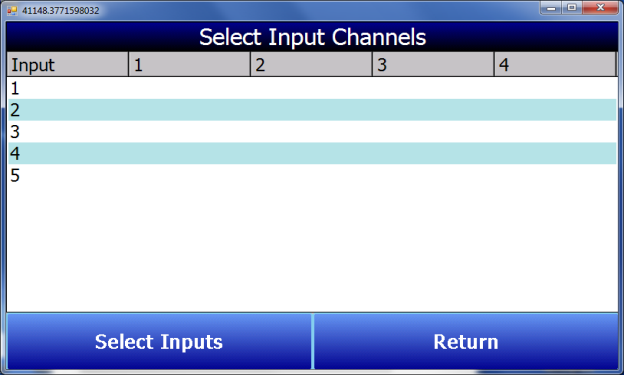

Figure 33 - Select Input Channels

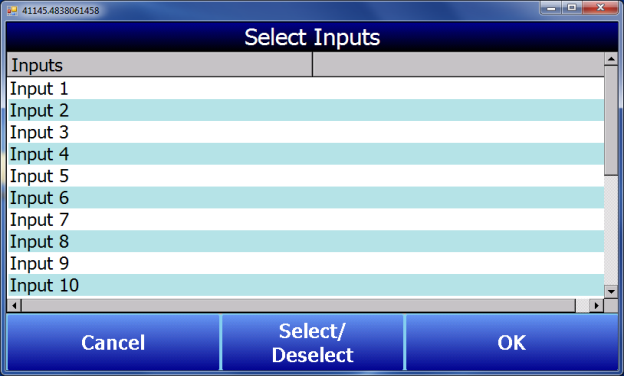

Figure 34 - Select Inputs
