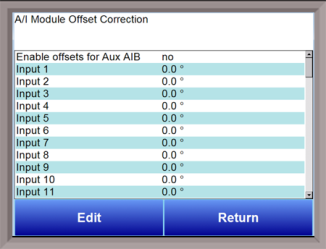

The Analog Input module offset correction menu option gives the user the ability to offset any input on any A/I module for up to forty (40) inputs.  Input correction curves can also be applied to inputs 1 through 40.  The offset can be in degrees + or -, and it is typically used to compensate for incorrect T/C wires.

Enable Offsets for Aux AIB

This option will determine if the offsets entered will be applied on the inputs.  The options are: Yes or No.

Input 1 – Input 40

This will be the offset for the specified input. The range of the offsets is –50.0 to 50.0.

Input 1 Correction – Input 40 Correction

This will allow the user to enter a correction curve, if desired, to inputs 1 through 40.  The options are: Not Used, Curve 1 – Curve 7.
