A/I Module Offset Correction

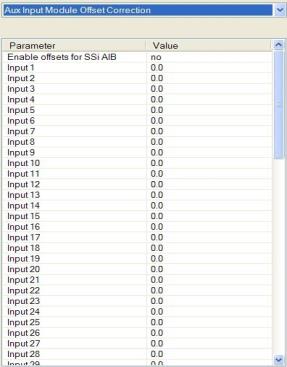

Aux Input Module Offset Correction Menu

This menu option will allow the user to enter offsets for the auxiliary inputs and apply any correction curves as needed.



Enable Offsets for SSi AIB

This will enable the use of offsets for any analog input boards.  The options are: Yes or No.



Input 1Input 40

This is where the actual offsets will be entered for each input.  The range is -50.050.0.



Input 0 CorrectionInput 39 Correction

This is where any correction curve can be applied for each input.  Note – The input names for the corrections are offset by 1, so Input 0 is actually Input 1, Input 39 is actually Input 40, etc.  The options are: Not Used, Curve 1, Curve 2, or Curve 3.
