Instrument Assignments
This menu option will allow the user to set up the Client instruments for the 9120.
** All devices on the same Client port must utilize the same protocol
** An address of zero (0) will disable the instrument**
Some controllers (AC20, for example) can provide dual functions (atmosphere and events) and must have the same address assigned for both.
Instruments

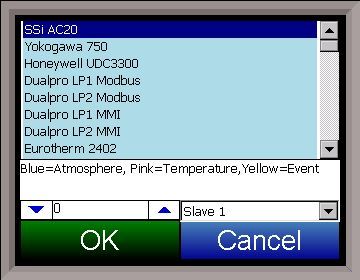

The 9120 unit breaks down the instruments into three different types: atmosphere, temperature, and event. The atmosphere instruments are listed with a blue background. The temperature instruments are listed with a pink background. The event instruments are listed with a yellow background. The following is the list of instruments available as Client instruments:
Address
This value allows the user to select the address that corresponds with the controller selected, with a range of 0 to 255.
Port
This is the port that the Client instrument will use. The options are: Client 1 or Client 2.
Client 1 – terminals 5(-), 6(+)
Client 2 – terminals 22(+), 23(-).
