Communications Setup

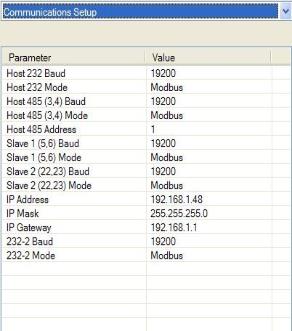

Communications Setup is the communications definitions for the controller.  Please contact Super Systems Inc. for more information regarding port setup.  It is strongly recommended that none of the settings be modified without technical support from Super Systems Inc.  Clicking on any of the values will display an input box that will modify the current settings.



Host 232 Baud

This will allow the user to set the Host 232 baud rate.  This must be set to 19200 for the Touchscreen.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Host 232 Mode

This will allow the user to set the RS232B mode.  Note – This must be set to Modbus for the Touchscreen.  The options are: Modbus, Cal Term, Televac, Modbus Master, or Sorensen.



Host 485 (3,4) Baud

This will allow the user to set the Host 485 baud rate.  This must be set to 19200 for the Touchscreen.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Host 485 (3,4) Mode

This will allow the user to set the Host 485 mode. The options are: MMI, Modbus, or ADAM.



Host 485 Address

This will allow the user to set the Host 485 address.  The range is 1 to 249.



Client 1 (5,6) Baud

This will allow the user to set the Client 1 baud rate.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Client 1 (5,6) Mode

This will allow the user to set the Client 1 mode.  The options are: MMI, Modbus, ADAM, Yokogawa, or Modbus host.



Client 2 Baud

This will allow the user to set the Client 2 baud rate.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



Client 2 Mode

This will allow the user to set the Client 2 mode.  The options are: MMI, Modbus, ADAM, SSi Analog Input Board, or Yokogawa.



IP Address

This option will allow the user to modify the IP address of the 9120 Instrument only.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.  Note – Communications may go down once the IP address has been changed and before the rest of the settings have been updated.



Subnet Mask

This option will allow the user to modify the IP subnet mask of the 9120 Instrument only.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.



Gateway

This option will allow the user to modify the IP gateway of the 9120 Instrument only.  Contact Super Systems at 513-772-0060 or your IT department before changing any of the IP addresses.



232-2 Baud

This will allow the user to set the 232-2 baud rate.  This must be set to 19200 for the Touchscreen. Note – This option is fixed at 19200 and is not currently used in the 9120 Touchscreen.

The options are:

1200        14400        57600

2400        19200        76800

4800        28800        115200

9600        38400



232-2 Mode

This will allow the user to set the 232-2 mode.  This must be set to Modbus for the Touchscreen.  The options are: Modbus, Cal Term, and Televac.  Note – This option is fixed at 19200 and is not currently used in the 9120 Touchscreen.
