Main Overview Screen

Using the operator interface shown below you can configure the Model 9120.

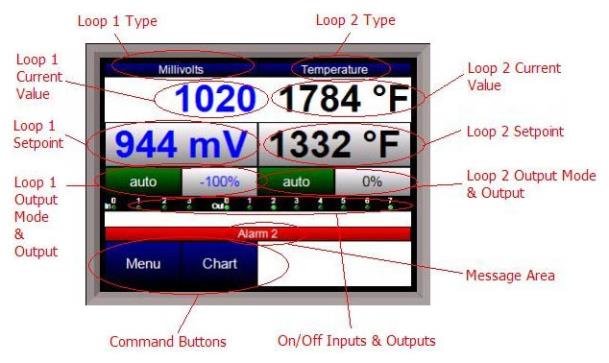

The Main Overview screen will be the initial screen that is displayed when the Touchscreen is first started up.  The Main Overview screen will display each loop’s: type, setpoint, current value, output mode, output, the activated/deactivated inputs and outputs, any messages, as well as the Menu button and the Chart button.  Any activated inputs or outputs will be lit up.  In the picture above, no inputs are activated, and outputs 0 and 7 are activated.  Note on Inputs and Outputs – The numbering on the display starts at 0 instead of 1, so input 2 shown above is actually input 3, and output 4 is actually output 5.  Any activated output will also be lit up on the Touchscreen unit.    The red bar will display any messages.



The list of runtime messages displayed depends on the setup of the 9120 instrument.



Nitrider:

  • H2 cell communications failure – There is a problem with the communications with the H2 cell



% C:

  • Next burnoff in XX hours XX minutes – This will display the time left until the next burnoff is performed.  The screen will also display any burnoff messages, such as the current remaining time of a burnoff, if a burnoff is being performed.



Redundant Probe:

  • Probe n active – indicates which probe is selected.  This message may be followed by:

    • Selection n forced by digital input – Indicates that the selected probe has been forced by digital input.  Digital input 1 selects probe 1; input 2 selects probe 2.

    • User controlled – Indicates that the probe has been manually selected by the operator.

    • Out of band condition detected – Indicates that the current probe has just gone out of band

    • Changing to probe n in sss seconds – Indicates that the specified probe will be selected in the time frame provided.  The message will count down while the timer is active.

  • Both inputs less than 950 mV – Neither probe can be selected when both inputs are less than 950 mV.

  • Input n over 1300 mV – The indicated input is over range.

  • Both inputs over 1300 mV – Both inputs are over range.

  • Probe Deviation – The selected alarm is active.  See the alarms section for instructions on setting up the alarms.



The list of error conditions is:

  • Alarm 1, Alarm 2, or Alarm 3 – The selected alarm is active.  See the alarms section for instructions on setting up the alarms. Note: The alarm text will always be displayed if an alarm is active regardless of the 9120’s setup.



The Menu button will display the menu options that will allow the user to configure the 9120 unit.  The Chart button will display the chart screen.  See the Menus Screens sections for instructions on the menus and the Chart Screen.
